Installation and configuration

Platform-specific SDK packages

Platform	Package Type	Action
Windows & Android	.zip	1. Download the SDK package. 2. Extract the .zip file to a local drive.
Linux	.tar.bz2	1. Download the SDK package. 2. Extract the tarball to a local folder using tar -xvjf filename.tar.bz2.
macOS & iOS	.dmg	1. Download the SDK package. 2. Mount the .dmg file. 3. Copy contents to a local drive.
NuGet	NuGet packages (.nupkg)	1. Open your project in Visual Studio. 2. Add the required NuGet packages via Package Manager or dotnet add package.

Toolkit Content

The IRISOCR™ SDK package contains the following folders and subfolders:

Folder	Windows	Linux	macOS	Android	iOS
Welcome page (Documentation)	Gateway to documentation
bin	Samples and utility binaries	Samples and utility binaries	SDK framework + utilities + C wrapper (.dll and .xml)	Precompiled samples (empty now)	SDK framework
include	Header files	Header files		Header files
include_c	C headers	C headers	C headers
lib	.lib file for DLL	.so files + idrs_cs_wrapper.dll and idrs_cs_wrapper.xml		.so files for all available ABIs
redist	Visual Studio redistributables (VS2022)
resources	All resources needed for characters recognition, such as lexicons and fonts dictionaries.
samples	C, C++, C# examples	C, C++, C# examples	C, C++, C# examples	SmartCapture	SmartCapture
work	Images for testing purposes

Tip

See the next tables per platform for a detailed description of all the binaries. Also, refer to Files required for your application.

List of files that are contained in the bin subfolder

Windows

Table 1. Windows - bin subfolder

File Type	File name	Description
Libraries	idrsbarcode16.dll	Main Barcode engine
	idrsbarcodeevoi.dll	Auxiliary barcode engine
	idrsevoibarcodewrapper16.dll	Auxiliary barcode engine wrapper
	idrsbarcodeext16.dll	QR code engine
	idrsirisbarcodeextwrapper16.dll	QR code engine wrapper
	idrsdocout16.dll	Document output library
	idrsdmtxbarcodewrapper16.dll	Datamatrix barcode engine wrapper
	idrsdmtx16.dll	Support for datamatrix barcodes
	idrsirisbarcodewrapper16.dll	Barcode engine wrapper
	idrskrn16.dll	iDRS™ main library
	idrsnetframework16.dll	.NET Framework API assembly
	idrsnetframework16.xml	.NET Framework API documentation
	idrsocr16.dll	OCR/ICR kernel
	idrsimp16.dll	Camera image preprocessing library
	idrsprepro16.dll	Image preprocessing library
	idrstiff16.dll	Tiff library
	idrszlib16.dll	Zlib library
	idrsjpeg2k16.dll	Wavelet compression library
	idrsjbig216.dll	Symbol compression library
	idrsjpeg16.dll	Jpeg encoding library
	idrspng16.dll	PNG encoding library
	idrsasian216.dll	Asian OCR engine
	idrsc16.dll	C API runtime
	idrsnet16.dll	.NET API assembly
	idrsnet16.xml	.NET API documentation
Sample Applications	CppBarcode16.exe	This sample application demonstrates the barcode recognition features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Barcode.
	CppImage2Html16.exe	This sample application shows how to convert an image to html text. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Image2Html
	CImage2Html16.exe	This sample application shows how to convert an image to html text. This sample is built using the C API. The source code can be found in <IDRS_SDK_ROOT>samples/c/Image2Html
	CppReader16.exe	This sample application demonstrates the character recognition and the document output features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Reader
	CsBarcode16.exe	This sample application demonstrates the barcode recognition features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Barcode
	CsImage2Html16.exe	This sample application shows how to convert an image to html text. his sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Image2Html
	CsReader16.exe	This sample application demonstrates the character recognition and the document output features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Reader

macOS

Table 2. macOS - bin subfolder

File Type	File name	Description
bin/Framework	iDRS16.framework	iDRS™ framework
bin	libidrsc16.dylib	C API runtime
	idrsnet16.dll	.NET API assembly
	idrsnet16.xml	.NET API assembly documentation
Sample Applications	CppBarcode16	This sample application demonstrates the barcode recognition features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Barcode.
	CppImage2Html16	This sample application shows how to convert an image to html text. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Image2Html
	CppReader16	This sample application demonstrates the character recognition and the document output features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Reader
	CImage2Html16	This sample application shows how to convert an image to html text. This sample is built using the C API. The source code can be found in <IDRS_SDK_ROOT>samples/c/Image2Html
	CsBarcode16	This sample application demonstrates the iDRS™ barcode recognition features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Barcode
	CsImage2Html16	This sample application shows how to convert an image to html text. his sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Image2Html
	CsReader16	This sample application demonstrates the character recognition and the document output features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Reader

Linux

Table 3. Linux - bin subfolder

File Type	File name	Description
Utility Programs	linux_install_idrs.sh	Shell script used to create symbolic links for the files needed by the SDK.
Sample Applications	CppBarcode16	This sample application demonstrates the barcode recognition features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Barcode.
	CppImage2Html16	This sample application shows how to convert an image to html text. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Image2Html
	CppReader16	This sample application demonstrates the character recognition and the document output features. This sample is built using the C++ API. The source code can be found in <IDRS_SDK_ROOT>/samples/cpp/Reader
	CImage2Html16	This sample application shows how to convert an image to html text. This sample is built using the C API. The source code can be found in <IDRS_SDK_ROOT>samples/c/Image2Html
	CsBarcode16	This sample application demonstrates the barcode recognition features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Barcode
	CsImage2Html16	This sample application shows how to convert an image to html text. his sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Image2Html
	CsReader16	This sample application demonstrates the character recognition and the document output features. This sample is built using the .NET API. The source code can be found in <IDRS_SDK_ROOT>/samples/dotnet/Reader

In the lib subfolder, you can also find:

• libidrsc16.so.version: C API runtime
• idrsnet16.dll: .NET API assembly
• idrsnet16.xml: .NET API assembly documentation

Environment setup

You need to establish the correct environment before using the toolkit.

The distribution package contains the full versioned library names for which symbolic links need to be created in the correct place.
The package contains a utility shell script that takes care of creating all the necessary symbolic links for you.

In order to invoke the shell script, follow these instructions:

1	Open a terminal window and go to the path where you unpacked the tar.bz2 archive containing the package.
2	Go to the bin folder
3	Execute sh linux_install_idrs.sh

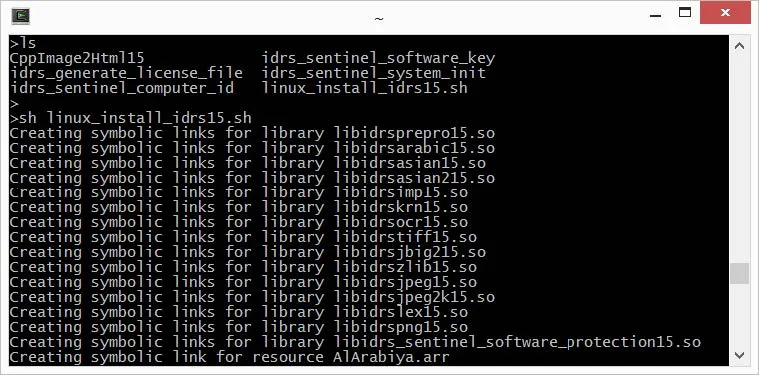

Image 1. Execute linux_install_idrs.sh

After creating the necessary symbolic links, you need to set the LD_LIBRARY_PATH environment variable to point to the lib folder.

Run the following command:

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:<path_to_iDRS_package>/lib/

Image 2. Set LD_LIBRARY_PATH environment variable

Tip

You can add the above command to your .bash_profile not to repeat it each time you launch a new terminal window.

You are now able to use the toolkit.
You can launch the sample application CppImage2Html16 to test that everything works fine.

Android

Host setup

To build Android applications using the IRISOCR™ SDK, make sure that the following elements are installed on the host computer:

1. Android SDK
   The toolkit is compatible with Android 4.2.2 (API 17) or higher. At least one API must be installed.

2. Android NDK
   As the IRISOCR™ SDK consists in native libraries, you need to have the Android NDK (Native Development Kit) available on your host computer.

   Caution

   No path with spaces Known issue with the Android NDK: compilation may fail if the path to the installed NDK package contains spaces!

3. Android Studio
   The official IDE for Android development is Android Studio. Of course, alternatives do exist and may be used instead.

Android Compatibility

• SDK version or target SDK version must be at least Android API 17.
• Android guidelines say native libraries of an Android application should link against shared C++ runtime, and all libraries should use the same runtime (see https://developer.android.com/ndk/guides/cpp-support.html) . The IRISOCR™ SDK follows that directive.

NuGet

• Platform packages: These packages automatically download all the packages needed for your operating system and architecture. These packages are:

  • iDRS.macOS
  • iDRS.Windows

• Architecture packages: These packages download the packages needed for your specific architecture. These packages are:

  • iDRS.Windows-x86
  • iDRS.Windows-x64
  • iDRS.Linux-x64

• Low-level packages: These packages are downloaded automatically when a platform and architecture package is used. But they can also be used directly if greater flexibility is required. These packages are:

  • iDRS.assets: This package contains the resources files needed to perform OCR.
  • iDRS.NET: This package contains the .NET dlls.
  • iDRS.runtime-platform-arch packages: A package containing the native library for each platform and architecture.
